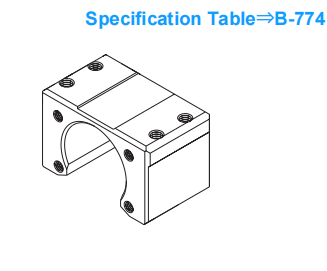

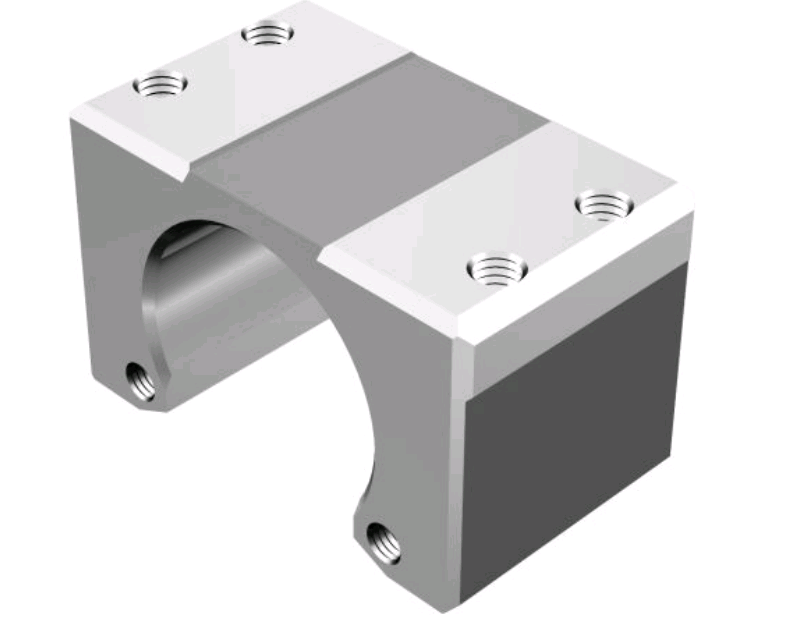

THK Nut Bracket MC1004
For THK Precision Ball Screws, a wide array of precision-ground screw shafts and ball screw nuts
are available as standard to meet diversified applications.
Description
THK Nut Bracket MC1004, online supply .
Welcome inquiry .

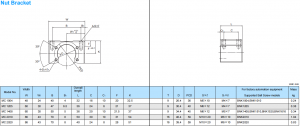

| Model No. | Width W | . | B | B; | Overall length L | C | . | F | K | T | D | PCD | S×[ | Si×8 | For factory automation equipment Supported Ball Screw models | Mass kg | |
| MC 1004 | 48 | 24 | 40 | 4 | 32 | 16 | 10 | 20 | 32.5 | 9 | 26.4 | 36 | M5×10 | M4×7 | BNK1004,BNK1010 | 0.24 | |
| MC 1205 | 60 | 30 | 47 | 6.5 | 36 | 24 | 6 | 21 | 37 | 9 | 30.4 | 40 | M6×12 | M4×7 | BNK1205 | 0.38 | |
| MC 1408 | 60 | 30 | 50 | 5 | 36 | 20 | 10 | 21.5 | 37 | 9 | 34.4 | 45 | M6×12 | M5×7 | BNK1408,BNK1510,BNK1520,BNK1616 | 0.34 | |
| MC 2010 | 86 | 43 | 70 | 8 | 50 | 30 | 10 | 31 | 54 | 16 | 46.4 | 59 | M10×20 | M6×10 | BNK2010 | 1.04 | |
| MC 2020 | 86 | 43 | 70 | 8 | 40 | 24 | 8 | 28 | 51 | 16 | 39.4 | 59 | M10×20 | M6×10 | BNK2020 | 0.83 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of MC1004， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
