THK Precision Ball Screw BNT 2806-5.3
For THK Precision Ball Screws, a wide array of precision-ground screw shafts and ball screw nuts
are available as standard to meet diversified applications.
Description
THK Precision Ball Screw Models BIF, DIK, BNFN, DKN, BLW,BNF, DK, MDK, BLK/WGF and BNT online supply .
Model BNT 2806-5.3 Welcome inquiry .

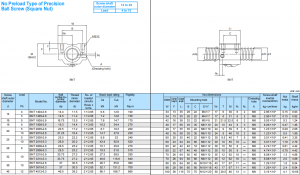

| Screw shaft outer diameter d | Lead
Ph | Model No. | Ball center-to- center diameter dp | Thread minor diameter dc | No.of loaded circuits Rows x turns | Rigidity K N/um | Nut dim | Screw shaft inertial moment/mm kg ·cm/mm | Nut mass kg | Shaft mass kg/m | ||||||||||||||
| B | C | Sx[ | ||||||||||||||||||||||
| 14 | 4 | BNT 1404-3.6 | 14.4 | 11.5 | 1×3.65 | 6.8 | 12.6 | 190 | 34 | 13 | 35 | 26 | 22 | M4X7 | 17 | 6 | 30 | 6 | 2 | M6 | 2.96×104 | 0.15 | 0.93 | |
| 5 | BNT 1405-2.6 | 14.5 | 11.2 | 1×2.65 | 7.2 | 12.6 | 150 | 34 | 13 | 35 | 26 | 22 | M4×7 | 17 | 6 | 31 | 6 | 2 | M6 | 2.96×104 | 0.15 | 0.92 | ||
| 16 | 5 | BNT 1605-2.6 | 16.75 | 13.5 | 1×2.65 | 7.8 | 14.7 | 170 | 42 | 16 | 36 | 32 | 22 | M5×8 | 21 | 21.5 | 32.5 | 6 | 2 | M6 | 5.05×10* | 0.3 | 1.24 | |
| 18 | 8 | BNT 1808-3.6 | 19.3 | 14.4 | 1×3.65 | 18.2 | 34.4 | 270 | 48 | 17 | 56 | 35 | 35 | M6X10 | 24 | 10 | 44 | 8 | 3 | M6 | 8.09×104 | 0.47 | 1.46 | |
| 20 | 5 | BNT 2005-2.6 | 20.5 | 17.2 | 1×2.65 | 8.7 | 18.3 | 200 | 48 | 17 | 35 | 35 | 22 | M6×10 | 24 | 9 | 39 | 5 | 3 | M6 | 1.23×103 | 0.28 | 2.06 | |
| 10 | BNT 2010-2.6 | 21.25 | 16.4 | 1×2.65 | 14.7 | 27.8 | 220 | 48 | 18 | 58 | 35 | 35 | M6×10 | 24 | 9 | 46 | 10 | 2 | M6 | 1-23×10 | 0.5 | 1.99 | ||
| 25 | 5 | BNT 2505-2.6 | 25.5 | 22.2 | 1×2.65 | 9.6 | 23 | 240 | 60 | 20 | 35 | 40 | 22 | M8×12 | 30 | 9.5 | 45 | 7 | 5 | M6 | 3.01×103 | 0.41 | 3.35 | |
| 10 | BNT 2510-5.3 | 26.8 | 20.2 | 2×2.65 | 43.4 | 92.8 | 520 | 60 | 23 | 94 | 40 | 60 | M8×12 | 30 | 10 | 55 | 10 | M6 | 3.01×103 | 1.18 | 2.79 | |||
| 28 | 6 | BNT 2806-2.6 | 28.5 | 252 | 1×2.65 | 10.1 | 25.8 | 270 | 60 | 22 | 42 | 40 | 18 | M8×12 | 30 | 10 | 50 | 8 | M6 | 4.74×10³ | 0.81 | 4.42 | ||
| BNT 2806-5.3 | 28.5 | 25.2 | 2×2.65 | 18.3 | 51.6 | 510 | 60 | 22 | 67 | 40 | 40 | M8×12 | 30 | 10 | 50 | 8 | M6 | 4.74×10-3 | 0.78 | 4.42 | ||||
| 32 | 10 | BNT 3210-2.6 | 33.75 | 27.2 | 1×2.65 | 27.3 | 59.5 | 330 | 70 | 26 | 64 | 50 | 45 | M8×12 | 35 | 12 | 62 | 10 | M6 | 8-08×103 | 1.3 | 4.98 | ||
| BNT 3210-5.3 | 33.75 | 27.2 | 2×2.65 | 49.6 | 118.9 | 640 | 70 | 26 | 94 | 50 | 60 | M8×12 | 35 | 12 | 62 | 10 | M6 | 8.08×10 | 2.0 | 4.98 | ||||
| 36 | 10 | BNT 3610-2.6 | 37 | 30.5 | 1×2.65 | 28.7 | 65.6 | 360 | 86 | 2g | 64 | 60 | 45 | M10×16 | 43 | 17 | 67 | 11 | M6 | 1.29×102 | 1.8 | 6.54 | ||
| BNT 3610-5.3 | 37 | 30.5 | 2×2.65 | 52.1 | 131.2 | 700 | 86 | 29 | 96 | 60 | 60 | M10×16 | 43 | 17 | 67 | 11 | M6 | 1.29×102 | 2.4 | 6.54 | ||||
| 45 | 12 | BNT 4512-5.3 | 46.5 | 39.2 | 2×2.65 | 68.1 | 186.7 | 860 | 100 | 36 | 115 | 75 | 75 | M12×20 | 50 | 20.5 | 80 | 13 | M6 | 3.16×102 | 4.1 | 10.56 | ||
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of BNT 2806-5.3， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
