THK ROD END MODEL NB-22T
[Material]
Outer ring : S35C
Spherical inner ring : SUJ2, 58 HRC or higher
Bush : Self-lubricating synthetic resin
[Fitting with the Shaft]
For the fitting between the shaft and the housing, the following values are recommended.
[Initial Lubrication]
This model can be used without lubrication. However, if desiring to provide initial lubrication, apply oil or grease to the spherical area.
Description
THK ROD END MODEL NB-22T (No Lubrication Type) , Welcome inquiry .

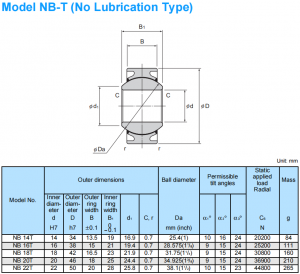

| Model No. | Outer dimensions | Static applied load Radial CsN | Mass g | |||||
| lnner diam-eter d H7 | Outerdiam-eter D h7 | Outer ring width B+0.1 | lnnerring widthB1 0-0.1 | d1 | C,r | |||
| NB 14T | 14 | 34 | 13.5 | 19 | 16.9 | 0.7 | 20200 | 84 |
| NB 16T | 16 | 38 | 15 | 21 | 19.4 | 0.7 | 25200 | 111 |
| NB 18T | 18 | 42 | 16.5 | 23 | 21.9 | 0.7 | 30800 | 160 |
| NB 20T | 20 | 46 | 18 | 25 | 24.4 | 0.7 | 36900 | 210 |
| NB 22T | 22 | 50 | 20 | 28 | 25.8 | 0.7 | 44800 | 265 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK ROD END,THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.S
If you have any demands of NB-22T, feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
