THK ROD END MODEL PBA-16
[Material]
Outer ring : High strength zinc alloy
Spherical inner ring : SUJ2, 58 HRC or higher
[Lubrication]
Apply lubricant before using the product.
The holder has a greasing hole and an oil groove; they allow grease to be replenished through the grease nipple as necessary.
Description
THK ROD END MODEL PBA-16 (Die Cast Type) , Welcome inquiry .

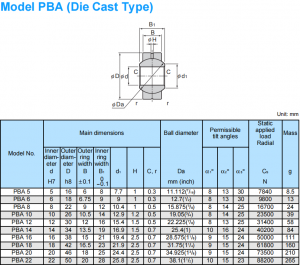

| Model No. | Main dimensions | Mass g | ||||||
| Inner diam-eter dH7 | Outer diam-eter Dh8 | Outer ring width B±0.1 | Inner ring width B1 0 -0.1 | d₁ | H | C,r | ||
| PBA 5 | 5 | 16 | 6 | 8 | 7.7 | 1 | 0.3 | 8.5 |
| PBA 6 | 6 | 18 | 6.75 | 9 | 9 | 1 | 0.3 | 13 |
| PBA 8 | 8 | 22 | 9 | 12 | 10.4 | 1 | 0.5 | 24 |
| PBA 10 | 10 | 26 | 10.5 | 14 | 12.9 | 1.2 | 0.5 | 39 |
| PBA 12 | 12 | 30 | 12 | 16 | 15.4 | 1.5 | 0.5 | 58 |
| PBA 14 | 14 | 34 | 13.5 | 19 | 16.9 | 1.5 | 0.7 | 84 |
| PBA 16 | 16 | 38 | 15 | 21 | 19.4 | 2.5 | 0.7 | 111 |
| PBA 18 | 18 | 42 | 16.5 | 23 | 21.9 | 2.5 | 0.7 | 160 |
| PBA 20 | 20 | 46 | 18 | 25 | 24.4 | 2.5 | 0.7 | 210 |
| PBA 22 | 22 | 50 | 20 | 28 | 25.8 | 2.5 | 0.7 | 265 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK ROD END,THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.S
If you have any demands of PBA-16, feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
