THK ROD END MODEL POS-10
[Material]
Holder : S35C (Chromate treatment) Spherical inner ring : SUJ2, 58 HRC or higher
Bush : Special copper alloy
[Lubrication]
Apply lubricant before using the product. The holder has a greasing hole and an oil groove; they allow grease to be replenished through the grease nipple as necessary.
To lubricate the product, replenish grease from the holder greasing hole for models POS5 and 6, or from the grease nipple for other models.
[Identification of Left-hand Thread]
If the male thread is left-hand, symbol “L” is added.
The actual product is marked with symbol “L” on the holder.
Description
THK ROD END MODEL POS-10 ,MALE THREADING TYPE , Welcome inquiry .

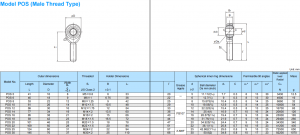

| Model No. | Outer dimensions | Threaded S₁JIS Class 2 | Holder Dimensions | Mass g | |||
| Length L | Diameter D | Width B1 0-0.1 | B±0.1 | L1 | |||
| POS 5 | 41 | 16 | 8 | M5×0.8 | 6 | 33 | 12.5 |
| POS 6 | 45 | 18 | 9 | M6×1 | 6.75 | 36 | 19 |
| POS 8 | 53 | 22 | 12 | M8×1.25 | 9 | 42 | 32 |
| POS 10 | 61 | 26 | 14 | M10×1.5 | 10.5 | 48 | 54 |
| POS 12 | 69 | 30 | 16 | M12×1.75 | 12 | 54 | 85 |
| POS 14 | 77 | 34 | 19 | M14×2 | 13.5 | 60 | 126 |
| POS 16 | 85 | 38 | 21 | M16×2 | 15 | 66 | 185 |
| POS 18 | 93 | 42 | 23 | M18×1.5 | 16.5 | 72 | 260 |
| POS 20 | 101 | 46 | 25 | M20×1.5 | 18 | 78 | 340 |
| POS 22 | 109 | 50 | 28 | M22×1.5 | 20 | 84 | 435 |
| POS 25 | 124 | 60 | 31 | M24×2 | 22 | 94 | 650 |
| POS 30 | 145 | 70 | 37 | M30×2 | 25 | 110 | 1070 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK ROD END,THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of POS-10， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
