THK SRS9XN Linear Guide Block
Caged Ball LM Guide model SRS has a structure where two raceways are incorporated into the compact
body, enabling the model to receive loads in all directions, and to be used in locations where a moment
is applied with a single rail. In addition, use of ball cages eliminates friction between balls, thus
achieving high speed, low noise, acceptable running sound, long service life, and long-term
maintenance-free operation
Description
SRS9XN Orginal THK products

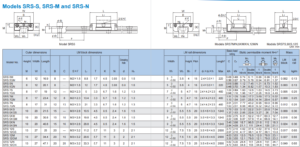

| Outer dimensions | LM block dimensions | |||||||||||
| Model No. | Height | Width | Length | Greasing hole | ||||||||
| M | W | L | B | C | SXZ | L | T | K | N | d | Ha | |
| SRS 5M SRS5GM | 6 | 12 | 16.9 | 8 | — | M2X1.5 | 8.8 | 1.7 | 4.5 | 0.93 | 0.8 | 1.5 |
| SRS 5N SRS5GN | 6 | 12 | 20.1 | 8 | — | M2X1.5 | 12 | 1.7 | 4.5 | 0.93 | 0.8 | 1.5 |
| SRS 7S SRS 7GS | 8 | 17 | 19 | 12 | — | M2X2.3 | 9 | 3.3 | 6.7 | 1.6 | 1.2 | 1.3 |
| SRS 7M SRS7GM | 8 | 17 | 23.4 | 12 | 8 | M2X2.3 | 13.4 | 3.3 | 6.7 | 1.6 | 1.2 | 1.3 |
| SRS 7N SRS 7GN | 8 | 17 | 31 | 12 | 13 | M2X2.3 | 21 | 3.3 | 6.7 | 1.6 | 1.2 | 1.3 |
| SRS9XS SRS9XGS | 10 | 20 | 21.5 | 15 | — | M3X2.8 | 10.5 | 4.5 | 8.5 | 2.4 | 1.6 | 1.5 |
| SRS 9XM SRS9XGM | 10 | 20 | 30.8 | 15 | 10 | M3X2.8 | 19.8 | 4.5 | 8.5 | 2.4 | 1.6 | 1.5 |
| SRS9XN SRS9XGN | 10 | 20 | 40.8 | 15 | 16 | M3X2.8 | 29.8 | 4.5 | 8.5 | 2.4 | 1.6 | 1.5 |
| SRS 12S SRS 12GS | 13 | 27 | 25 | 20 | — | M3 X 3.2 | 11.2 | 5.7 | 11 | 3 | 2 | 2.1 |
| SRS 12M SRS 12GM | 13 | 27 | 34.4 | 20 | 15 | M3X3.2 | 20.6 | 5.7 | 11 | 3 | 2 | 2.1 |
| SRS 12N SRS 12GN | 13 | 27 | 47.1 | 20 | 20 | M3X3.2 | 33.3 | 5.7 | 11 | 3 | 2 | 2.1 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands ，
feel free to contact us online or leave a message .
