HSR20M1B THK Linear Gudie Block

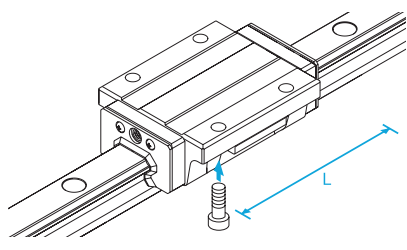

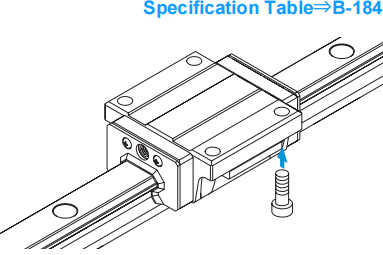

The flange of the LM block has through holes.
Used in places where the table cannot have
through holes for mounting bolts.
Description
HSR20M1B THK Linear Gudie Block . online chat .

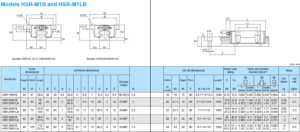

| Model No. | Outer dimensions | LM block dimensions | H3 | Mass | |||||||||||||
| Height M | Mdti W | Length L | B | C | H | Li | t | T | Ti | K | N | E | Grease nipple | LM block kg | LM rai kg/m | ||
| HSR15M1B | 24 | 47 | 59.6 | 38 | 30 | 4.5 | 38.8 | 11 | 6.5 | 7 | 19.3 | 4.3 | 5.5 | PB1021B | 3.5 | 0.2 | 1.5 |
| HSR20M1B HSR20M1LB | 30 | 63 | 76 92 | 53 | 40 | 6 | 50.8 66.8 | — | 9.5 | 10 | 26 | 5 | 12 | B-M6F | 4 | 0.35 0.47 | 2.3 |
| HSR 25M1B HSR 25M1LB | 36 | 70 | 83.9 103 | 57 | 45 | 7 | 59.5 78.6 | 16 | 11 | 10 | 30.5 | 6 | 12 | B-M6F | 5.5 | 0.59 0.75 | 3.3 |
| HSR 30M1B HSR 30M1LB | 42 | 90 | 88 121.4 | 72 | 52 | 9 | 70.4 93 | 18 | 9 | 10 | 35 | 7 | 12 | B-M6F | 7 | 1.1 1.3 | 4.8 |
| HSR 35M1B HSR 35M1LB | 4« | 100 | 112 137.4 | 82 | 62 | 9 | 80.4 105.8 | 21 | 12 | 13 | 40.5 | 8 | 12 | B-M6F | 7.5 | 1.6 2 | 6.6 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands HSR20M1B， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
