HSR35M1R THK Linear Gudie Block

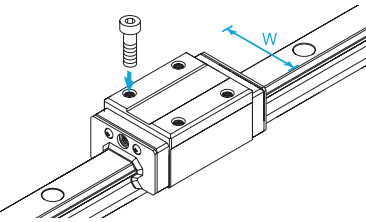

With this type, the LM block has a smaller width
(W) and tapped holes. Used in places where the
space for table width is limited.
Description
HSR35M1R THK Linear Gudie Block . online chat .
| Model No. | OUer dimensions | LM block dimensions | H3 | Mass | |||||||||||
| Height M | Width W | Length L | B | C | SXf | L | T | K | N | E | Grease nipple | LM block kg | LM rai kg/m | ||
| HSR 15M1R | 28 | 34 | 59.6 | 26 | 26 | M4X5 | 38.8 | 6 | 23.3 | 8.3 | 5.5 | PB1021B | 3.5 | 0.2 | 1.5 |
| HSR20M1R HSR20M1LR | 30 | 44 | 76 92 | 32 | 36 50 | M5X6 | 50.8 66.8 | 8 | 26 | 5 | 12 | B-M6F | 4 | 0.35 0.47 | 2.3 |
| HSR25M1R HSR25M1LR | 40 | 48 | 83.9 103 | 35 | 35 50 | M6X8 | 59.5 78.6 | 8 | 34.5 | 10 | 12 | B-M6F | 5.5 | 0.59 0.75 | 3.3 |
| HSR30M1R HSR30M1LR | 45 | 60 | 88 121.4 | 40 | 40 60 | M8X10 | 70.4 93 | 8 | 38 | 10 | 12 | B-M6F | 7 | 1.1 1.3 | 4.8 |
| HSR35M1R HSR35M1LR | 55 | 70 | 112 137.4 | 50 | 50 72 | M8X12 | 80.4 105.8 | 10 | 47.5 | 15 | 12 | B-M6F | 7.5 | 1.6 2 | 6.6 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands of HSR35M1R， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
