LBG90 THK BALL SPLINE WITH GEARS MODEL LBG
Ball Spline with Gears Model LBG
Specification Table⇒B-396
These models are unit types based on model
LBR, but have gear teeth on the flange circum
ference and radial and thrust bearings on the
spline nut, all compactly integrated. It is optimal
for a torque transmission mechanism with spline
nut drive.
Description
LBG90 THK BALL SPLINE WITH GEARS MODEL LBG .

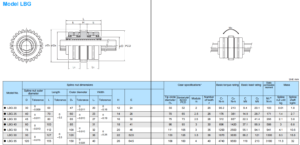

| Model No. | Spine nut dimensions | Gear specifications* | Basic torque rating | Basic load rating | Static pemrinHe moment | Mass | |||||||||||||||
| Spline nut outer diameter | Length | Outer diameter | AMth | H | E | ||||||||||||||||
| D | Tolerance | L | Tolerance | D« | Tolerance | L | Tolerance | Tip circle diameter Dfi | Standadp 岫 dsnictff PCD | Module m | Number of teeth z | Ct N-m | Cbt N-<n | C kN | C. kN | ML N-m | Spline nut unit kg | Spline shaft kgftn | |||
| • LBG 20 | 30 | 0 -0.009 | 60 | 0 -02 | 47 | 0 -0.011 | 20 | 0 -0.16 | 12 | 24 | 56 | 52 | 2 | 26 | 90.2 | 213 | 9.4 | 20.1 | 103 | 0.61 | 1.8 |
| • LBG 25 | 40 | 0 -0.011 | 70 | 60 | 0 -0.013 | 23 | 0 -0.19 | 14 | 28 | 70 | 65 | 2.5 | 26 | 176 | 381 | 14.9 | 28.7 | 171 | 1.4 | 2.7 | |
| • LBG 30 | 45 | 80 | 65 | 27 | 16 | 32 | 75 | 70 | 2.5 | 28 | 312 | 657 | 22.5 | 41.4 | 295 | 2.1 | 3.8 | ||||
| • LBG 40 | 60 | 0 -0.013 | 100 | 85 | 0 -0.015 | 31 | 0 -025 | 18 | 41 | 96 | 90 | 3 | 30 | 696 | 1420 | 37.1 | 66.9 | 586 | 3 | 6.8 | |
| • LBG 50 | 75 | 112 | 0 -03 | 100 | 32 | 20 | 46 | 111 | 105 | 3 | 35 | 1290 | 2500 | 55.1 | 94.1 | 941 | 4.1 | 10.6 | |||
| LBG 60 | 90 | 0 -0.015 | 127 | 120 | 38 | 22 | 52.5 | 133 | 126 | 3.5 | 36 | 1870 | 3830 | 06.2 | 121 | 1300 | 6.3 | 15.6 | |||
| • LBG 85 | 120 | 155 | 150 | 0 -0.025 | 40 | 26 | 64.5 | 168 | 160 | 4 | 40 | 4740 | 9550 | 119 | 213 | 3180 | 11.8 | 32 | |||
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands LBG90， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
