NR85LB THK Linear Guide Rail Slide Block
Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and endplates
incorporated in the LM block allow the balls to circulate. The raceways are cut into deep grooves
that have a radius closer to that of the balls than in the conventional design, using special equipment and an extremely precise cutting technique. This design allows high rigidity, high vibration/impact resistance and high damping capacity, all of which are required for machine tools, thus making
these models capable of bearing ultra-heavy loads
Description
NR85LB Orginal THK products

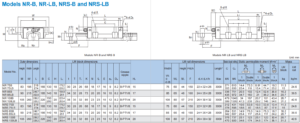

| Model No. | Outer dimensions | LM block dimensions | h3 | |||||||||||||||
| Height M | Width W | Length L | B | C | H | L | t | T | K | N | fo | E | 6o | Do | Grease nipple | |||
| NR75B NR 75LB | 83 | 195 | 218 274 | 165 | 130 | 18 | 170.2 226.2 | 30 | 28 | 26 | 68 | 18 | 17 | 16 | 9 | 8.2 | B-PT1/8 | 15 |
| NR85B NR 85LB | 90 | 215 | 246.7 302.8 | 185 | 140 | 18 | 194.9 251 | 34 | 32 | 28 | 73 | 20 | 20 | 16 | 10 | 8.2 | B-PT1/8 | 17 |
| NR100B NR100LB | 105 | 260 | 286.2 326.2 | 220 | 150 200 | 20 | 223.4 263.4 | 38 | 35 | 32 | 85 | 23 | 23 | 10 | 12 | 8.2 | B-PT1/4 | 20 |
| NRS 75B NRS 75LB | 83 | 195 | 218 274 | 165 | 130 | 18 | 170.2 226.2 | 30 | 28 | 26 | 68 | 18 | 17 | 16 | 9 | 8.2 | B-PT1/8 | 15 |
| NRS 85B NRS 85LB | 90 | 215 | 246.7 302.8 | 185 | 140 | 18 | 194.9 251 | 34 | 32 | 28 | 73 | 20 | 20 | 16 | 10 | 8.2 | B-PT1/8 | 17 |
| NRS 100B NRS 100LB | 105 | 260 | 286.2 326.2 | 220 | 150 200 | 20 | 223.4 263.4 | 38 | 35 | 32 | 85 | 23 | 23 | 10 | 12 | 8.2 | B-PT1/4 | 20 |
