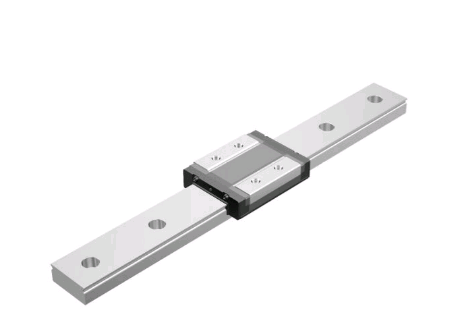

RSR9WZM BEARING BLOCK THK JAPAN
It has a longer overall LM block length (L), a
broader width (W) and greater rated load and
permissible moment than RSR-Z.
Description
RSR9WZM BEARING BLOCK THK JAPAN

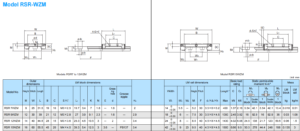

| Model No. | Outer dimensions | LM block dimensions | Mass | ||||||||||||
| Height M | Width W | Length L | B | C | Sxf | L | T | K | N | E | Greas- d | Grease nipple | LM block kg | LM rail kg/m | |
| RSR7WZM | 8 | 17 | 23.4 | 12 | 8 | M2X2.5 | 13.2 | 3.4 | 6.5 | 1.6 | — | 1.5 | — | 0.008 | 0.23 |
| RSR9WZM | 10 | 20 | 30.8 | 15 | 10 | M3X2.7 | 19.4 | 4.6 | 7.8 | 2.4 | — | 1.6 | — | 0.014 | 0.32 |
| RSR12WZM | 13 | 27 | 35 | 20 | 15 | M3X3.2 | 20.4 | 4.5 | 10.6 | 3.1 | — | 2 | — | 0.028 | 0.58 |
| RSR15WZM | 16 | 32 | 43 | 25 | 20 | M3X3.5 | 26.5 | 5.5 | 12.6 | 2.9 | 3.6 | — | PB107 | 0.05 | 0.925 |
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
There are many types of THK products,we can not upload all of them at present.
If you have any demands ，
RSR9WZM, feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
