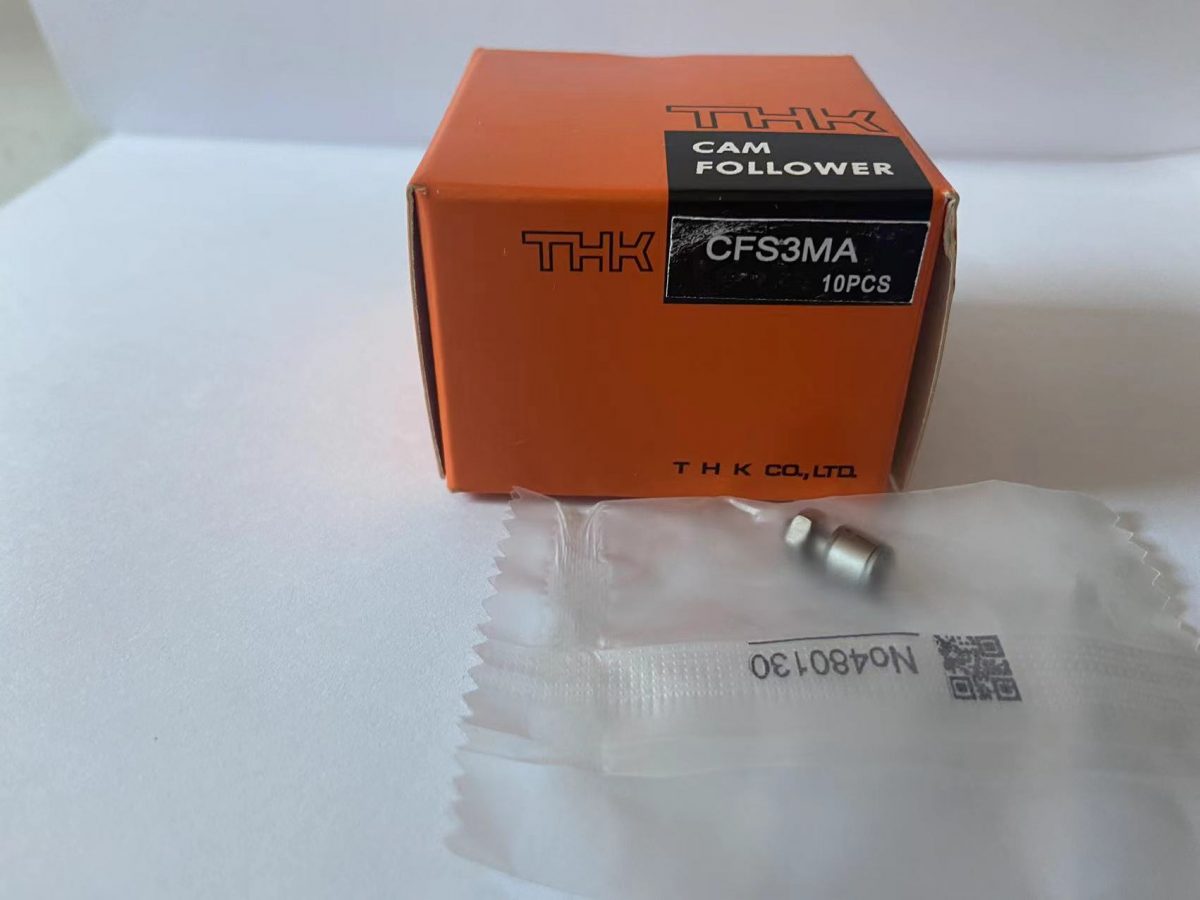

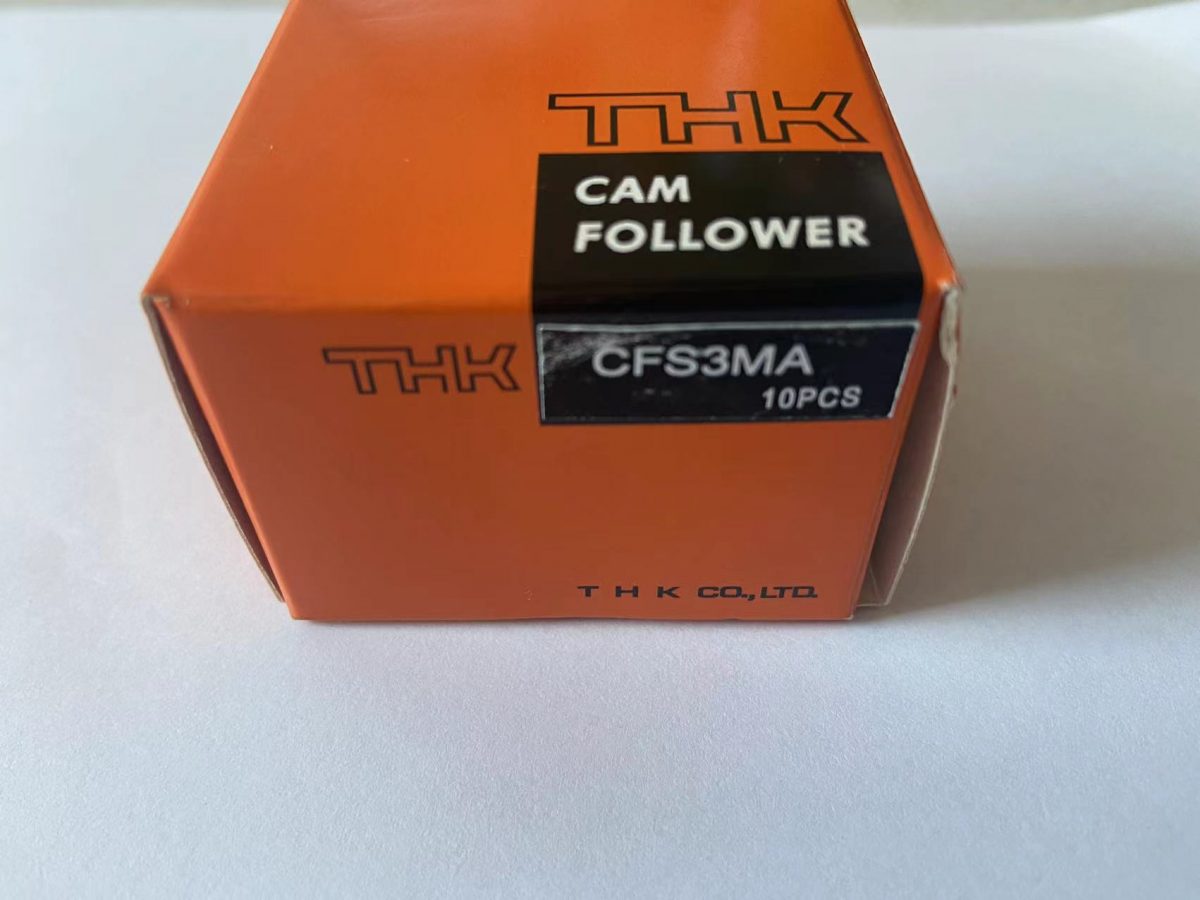

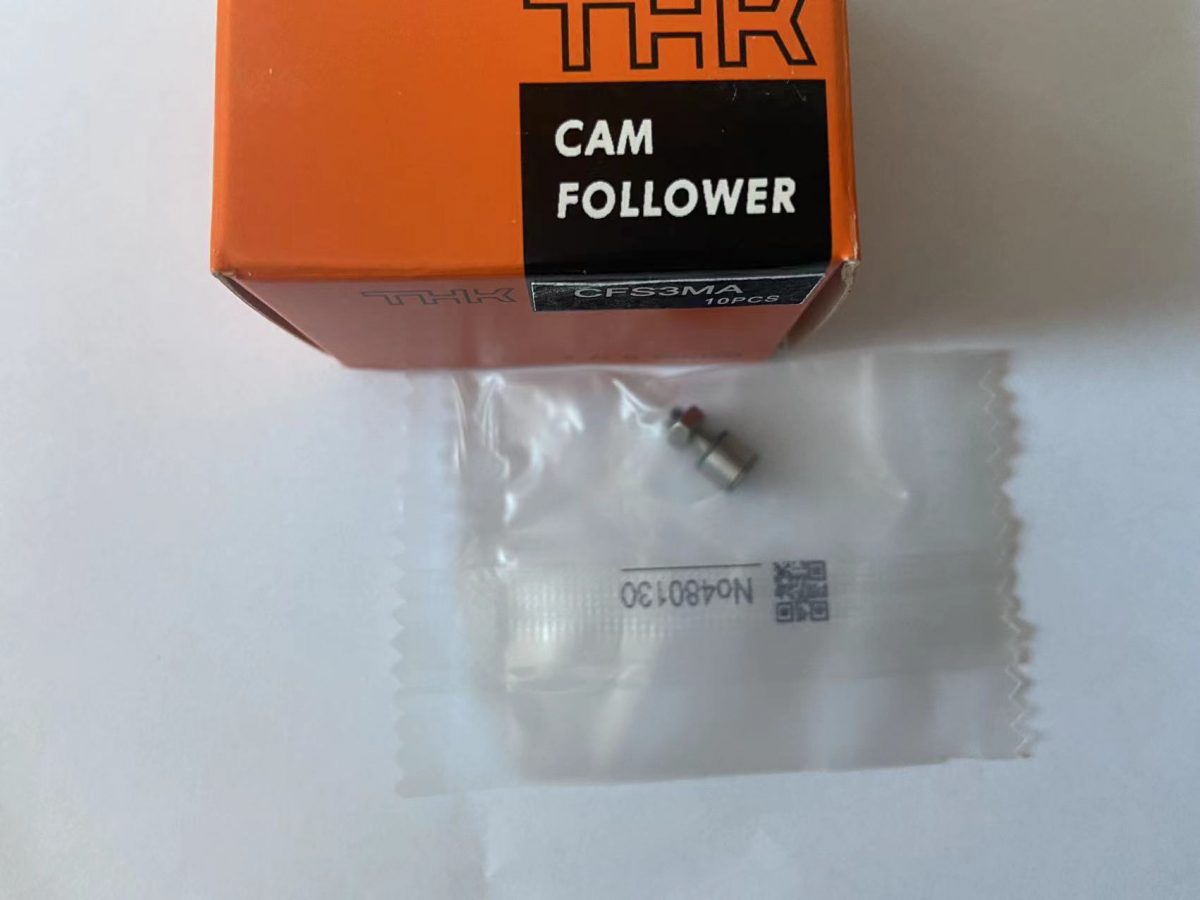

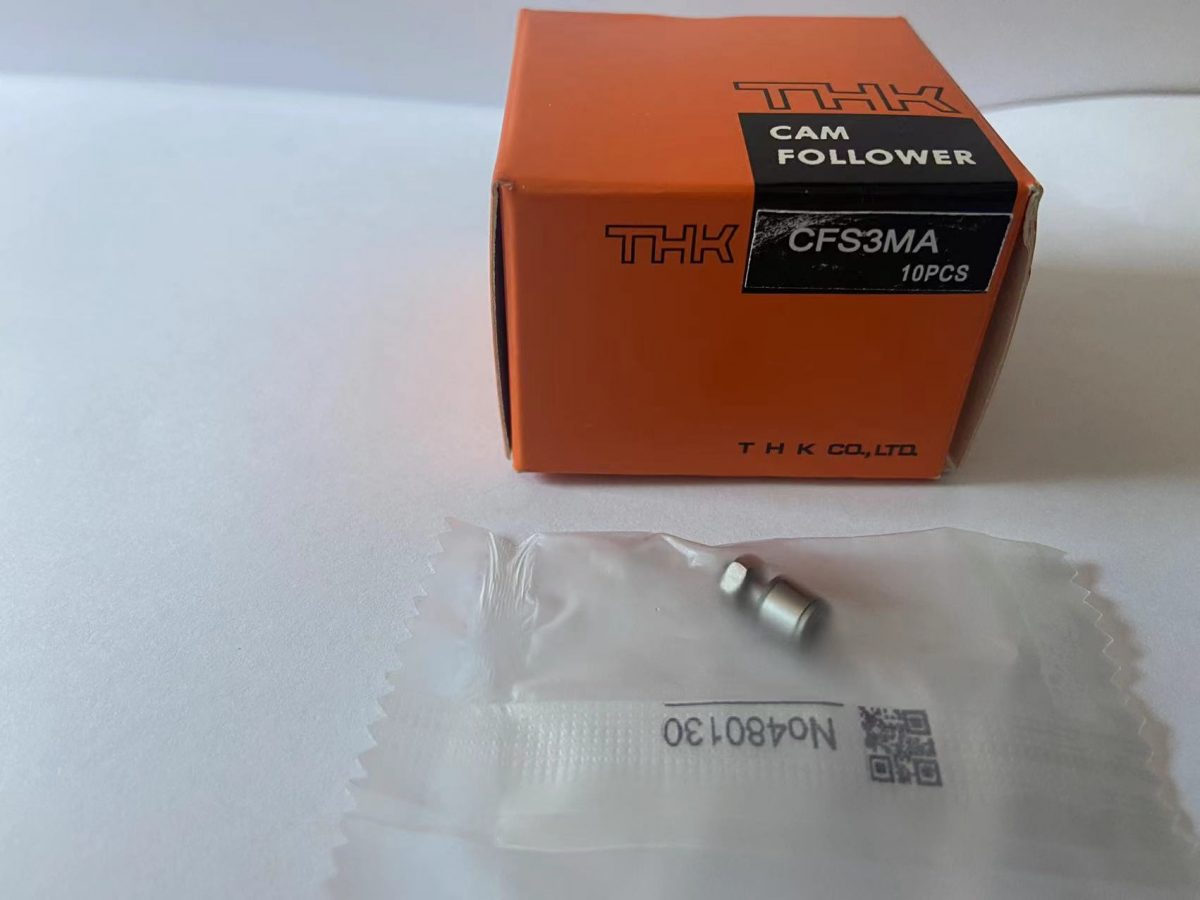

THK CFS3MA Outer-ring Compact-type Cam Follower Model CFS-A
In this bearing, very thin needle rollers are assembled in the outer ring. This product is designed as a compact type with a small external diameter of the outer ring for the stud diameter. The product is used in electronic parts, OA devices, miniature index devices, etc
Description
THK CFS3MA
Outer-ring Compact-type Cam Follower Model CFS-A, READY STOCK !!!!!
Contact us directly .
| Stud diameter d | Model No. | Main dimensions | |||||||||
| Outer diameter D | Outer ring width | Threaded G | G. | B | Overall length B. | B? | c. | H | Shoulder height f (Min.) | ||
| c | |||||||||||
| 2.5 | CFS2.5-A | 5 | 3 | M2.5X0.45 | 2.5 | 4.5 | 9.5 | 5 | 0.7 | 0.9 | 4.8 |
| 3 | CFS3-A | 6 | 4 | M3X0.5 | 3 | 5.5 | 11.5 | 6 | 0.7 | 1.5 | 5.8 |
| 4 | CFS4–A | 8 | 5 | ~M4X0.7 | 4 | 15 | 8 | 1 | 2 | ||
| 5 | CFS5-A | 10 | 6 | M5X0.8 | 5 | 8 | 18 | 10 | 1 | 2.5 | 9.6 |
| 6 | CFS6-A | 12 | 7 | M6X1.0 | 6 | 9.5 | 21.5 | 12 | 1.2 | 3 | 11.6
|
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands THK CFS3MA， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
