THK LINK BALL MODEL BL-12BD
[Material]
Holder : High strength zinc alloy
Ball shank : Lightly Carburized Carbon Steel Ball: 650 Hv or higher
Shank S35C (20 to 28 HRC) Chromate treatment
Boot : NBR special synthetic rubber
[Identification of Left-hand Thread]
If the female threading is left-handed, its identification depends on the marking.
THK LINK BALL MODEL BL-12BD , Welcome inquiry .

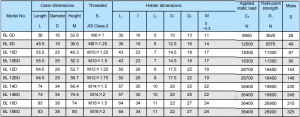

Model No. | Outer dimensions | Threaded S1 JIS Class 2 | Holder dimensions | Mass g | |||||||
LengthL | DiameterD | Height M | L₁ | L2 | D1 | D2 | W 0-0.3 | ||||
BL 6D | 38 | 16 | 32.6 | M6×1 | 30 | 16 | 5 | 10 | 13 | 11 | 26 |
BL 8D | 45.5 | 19 | 38.6 | M8×1.25 | 36 | 19 | 6 | 12.5 | 16 | 14 | 49 |
BL 10D | 55.5 | 25 | 46.3 | M10×1.25 | 43 | 23 | 7 | 14.5 | 19 | 17 | 87 |
BL 10BD | 55.5 | 25 | 52.3 | M10×1.5 | 43 | 23 | 7 | 14.5 | 19 | 17 | 90 |
BL 12D | 64.5 | 29 | 52.7 | M12×1.25 | 50 | 26 | 8 | 17.5 | 22 | 19 | 143 |
BL 12BD | 64.5 | 29 | 59.7 | M12×1.75 | 50 | 26 | 8 | 17.5 | 22 | 19 | 148 |
BL 14D | 74 | 34 | 68.4 | M14×1.5 | 57 | 30 | 10 | 20 | 25 | 22 | 235 |
BL 14BD | 74 | 34 | 74.4 | M14×2 | 57 | 30 | 10 | 20 | 25 | 22 | 245 |
BL 16D | 83 | 38 | 74 | M16X1.5 | 64 | 34 | 11 | 22 | 27 | 24 | 315 |
BL 16BD | 83 | 38 | 80 | M16×2 | 64 | 34 | 11 | 22 | 27 | 24 | 325 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK ROD END,THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.S
If you have any demands of BL-12BD, feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
