THK Precision Ball Screw DK 5010-4
For THK Precision Ball Screws, a wide array of precision-ground screw shafts and ball screw nuts
are available as standard to meet diversified applications.
THK Precision Ball Screw Models BIF, DIK, BNFN, DKN, BLW,BNF, DK, MDK, BLK/WGF and BNT online supply .
Model DK 5010-4 Welcome inquiry .

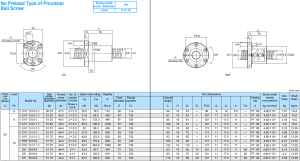

Screw shaft outer diameter d | ead
Ph | Model No. | Ball center- to-center diameter dp | Thread minor diameter dc | No. of loaded circuits Rows x turns | Basicload rating | Rigidity K N/um | Screw shaft inertial moment/mm kg ·cm²/mm | Nut mass kg | Shaft mass kg/m | |
Ca kN | Coa kN | ||||||||||
50 | 5 | O BNF 5005-4.5 | 50.75 | 47.2 | 3×1.5 | 20.2 | 79.5 | 710 | 4.82×10-2 | 1.91 | 14.4 |
8 | O BNF 5008-2.5 | 51.25 | 45.5 | 1×2.5 | 21.6 | 66.2 | 430 | 4.82×10-2 | 2.52 | 14.0 | |
O BNF 5008-5 | 51.25 | 45.5 | 2X2.5 | 39.1 | 132.3 | 840 | 4.82×10-2 | 3.16 | 14.0 | ||
O BNF 5008-7.5 | 51.25 | 45.5 | 3×2.5 | 55.4 | 198.9 | 1230 | 4.82×10-2 | 3.8 | 14.0 | ||
10 | O BNF 5010-2.5 | 51.75 | 44.4 | 1×2.5 | 32 | 88.2 | 450 | 4.82×10-2 | 3.33 | 13.38 | |
O BNF 5010-3 | 51.75 | 44.4 | 2X1.5 | 37.5 | 105.8 | 540 | 4-8210-2 | 3.88 | 13.38 | ||
O BNF 5010-3.5 | 51.75 | 44.4 | 1×3.5 | 42.8 | 123.5 | 620 | 4.82×10-2 | 3.66 | 13.38 | ||
O BNF 5010-5 | 51.75 | 44.4 | 2×2.5 | 58.2 | 176.4 | 880 | 4.82×10-2 | 4.31 | 13.38 | ||
O BNF 5010-7.5 | 51.75 | 44.4 | 3×2.5 | 82.5 | 264.6 | 1290 | 4.82×10-2 | 5.28 | 13.38 | ||
DK 5010-3 | 51.75 | 44.4 | 3×1 | 33.9 | 90.7 | 470 | 4.82×10-2 | 2.14 | 13.38 | ||
DK 5010-4 | 51.75 | 44.4 | 4×1 | 43.4 | 120.5 | 610 | 4.82×10-2 | 2.3 | 13.38 | ||
DK 5010-6 | 51.75 | 44.4 | 6×1 | 62.7 | 186.8 | 930 | 4.82×10-2 | 2.65 | 13.38 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , ect…
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
There are many types of THK products,we can not upload all of them at present.
If you have any demands of DK 5010-4, feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
