THK PRODUCT SLIDE RAIL MODEL FBL 35F LENGTH 406MM

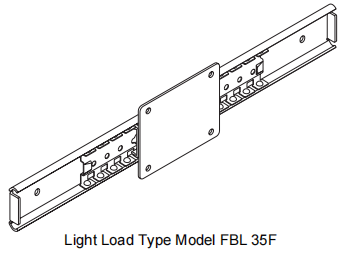

Light Load Type Model FBL 35F
Specification Table⇒B-564
Using a flange type that can easily be mounted,
this slide-type model is capable of performing
straight, finite motion.
Description
THK PRODUCT SLIDE RAIL MODEL FBL 35F LENGTH 406MM , full stock
| Mounting plate | Model No. | #3 | #4 | #5 | #6 | #7 | #8 | Dimension of the otter rail mounting hole 仕0.3) | ||
| Lengt)(A±0.8) | 76.2 | 101.6 | 127 | 152.4 | 177.8 | 203.2 | ||||
| Rail length L(±0.8) | Skokelengt) S(±3)*Varie$v«h(heconiHnalon tn mountng plate above. | C | D | E | ||||||
| 305 | 225.4 | 200.0 | 174.6 | 149.2 | — | — | — | 152.4 | 254.0 | |
| 356 | 276.2 | 250.8 | 225.4 | 200.0 | 174.6 | 149.2 | — | 203.2 | 304.8 | |
| 406 | 327.0 | 301.6 | 276.2 | 250.8 | 225.4 | 200.0 | — | 254.0 | 355.6 | |
| 457 | 377.8 | 352.4 | 327.0 | 301.6 | 276.2 | 250.8 | 203.2 | 304.8 | 406.4 | |
| 508 | 428.6 | 403.2 | 377.8 | 352.4 | 327.0 | 301.6 | 228.6 | 355.6 | 457.2 | |
| 559 | 479.4 | 454.0 | 428.6 | 403.2 | 377.8 | 352.4 | 254.0 | 406.4 | 50&0 | |
| 610 | 530.2 | 504.8 | 479.4 | 454.0 | 428.6 | 403.2 | 279.4 | 457.2 | 558.8 | |
| 660 | 581.0 | 555.6 | 530.2 | 504.8 | 479.4 | 454.0 | 304.8 | 508.0 | 609.6 | |
| 711 | 631.8 | 606.4 | 581.0 | 555.6 | 530.2 | 504.8 | 330.2 | 558.8 | 660.4 | |
| 762 | 682.6 | 657.2 | 631.8 | 606.4 | 581.0 | 555.6 | 355.6 | 609.6 | 711.2 | |
| Pitch of the mounting plate mounting hole (B±0.3) | 60.2 | 85.6 | 111.0 | 136.4 | 161.8 | 187.2 | — | — | — | |
| Permissible load (N/palr) | 294 | 392 | 490 | 588 | 686 | 784 | — | — | — | |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , THK Cross Roller Guide .THK Slide rail .ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demand THK PRODUCT SLIDE RAIL MODEL FBL 35F LENGTH 406MM. feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
